DIY 3KW Hybrid Off-grid Solar Cell System Installation

DIY 3KW Hybrid Off-grid Solar Cell System Installation

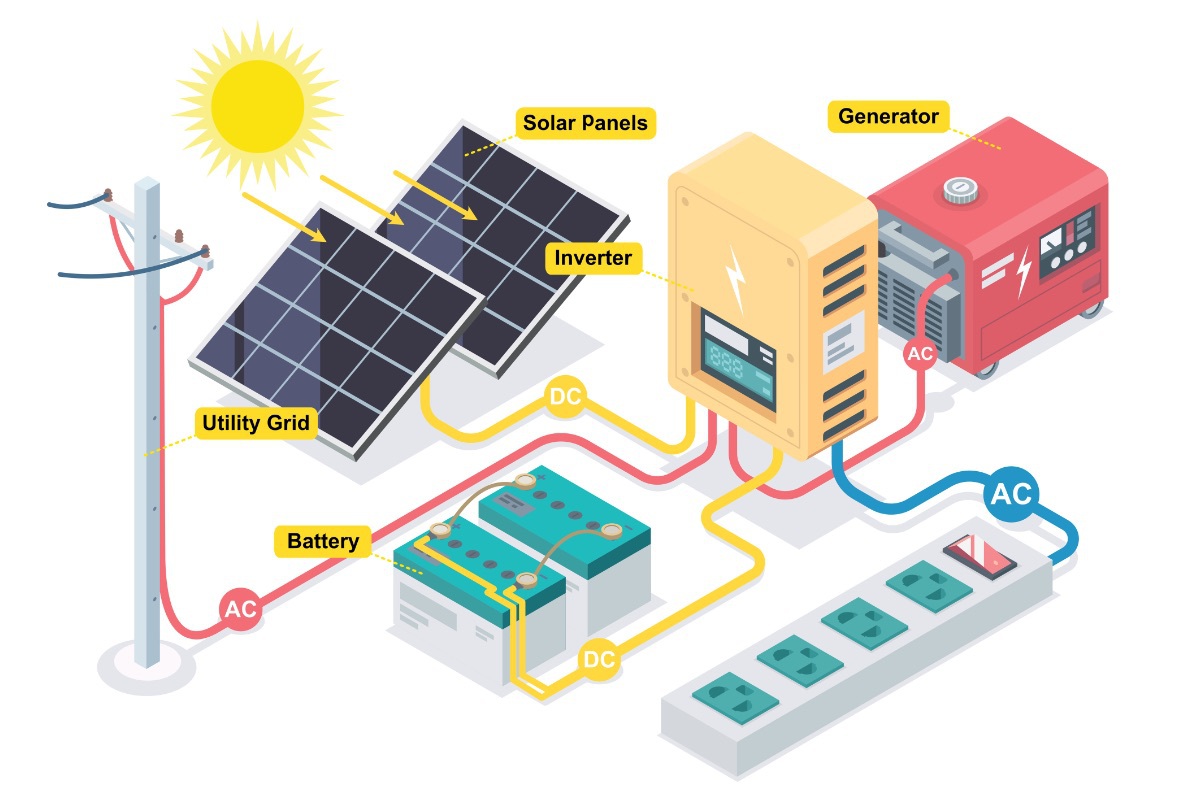

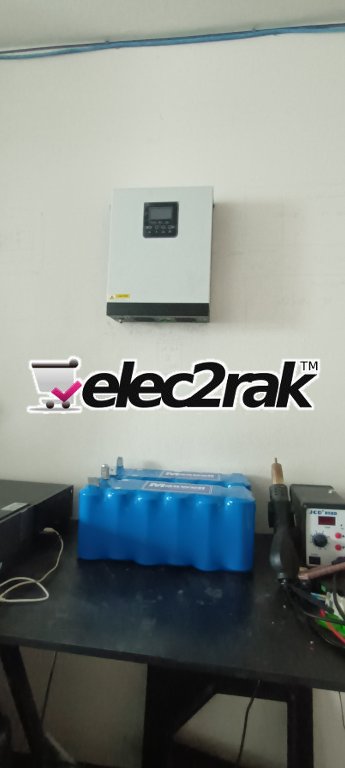

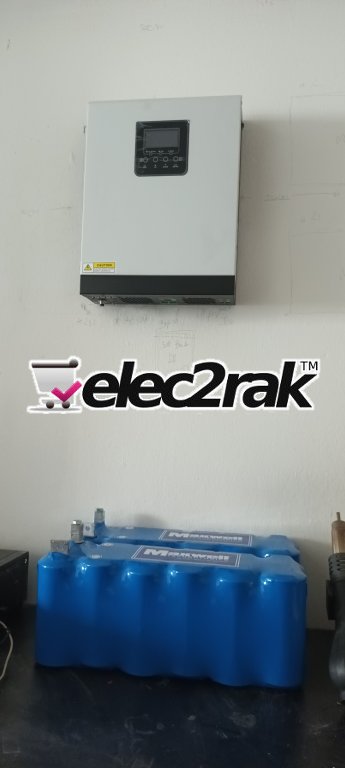

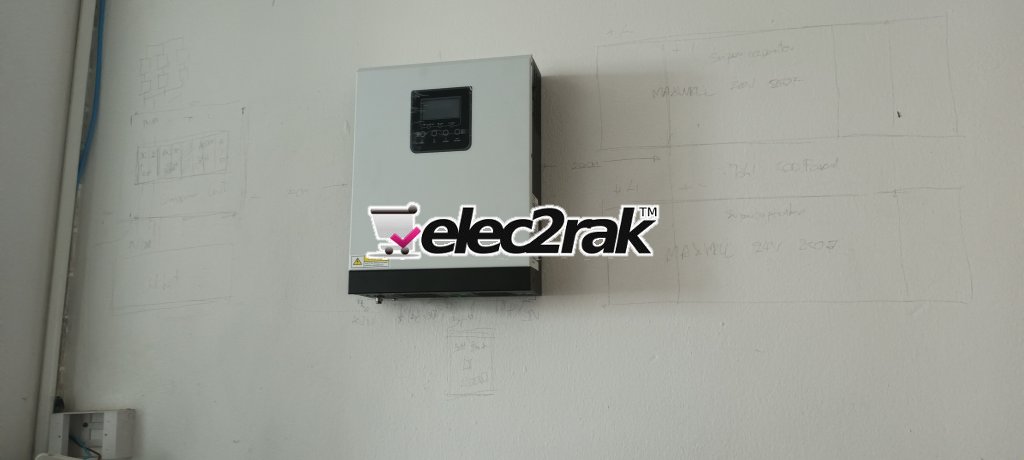

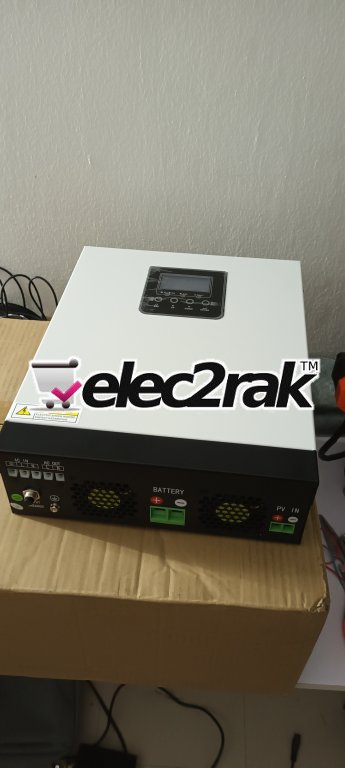

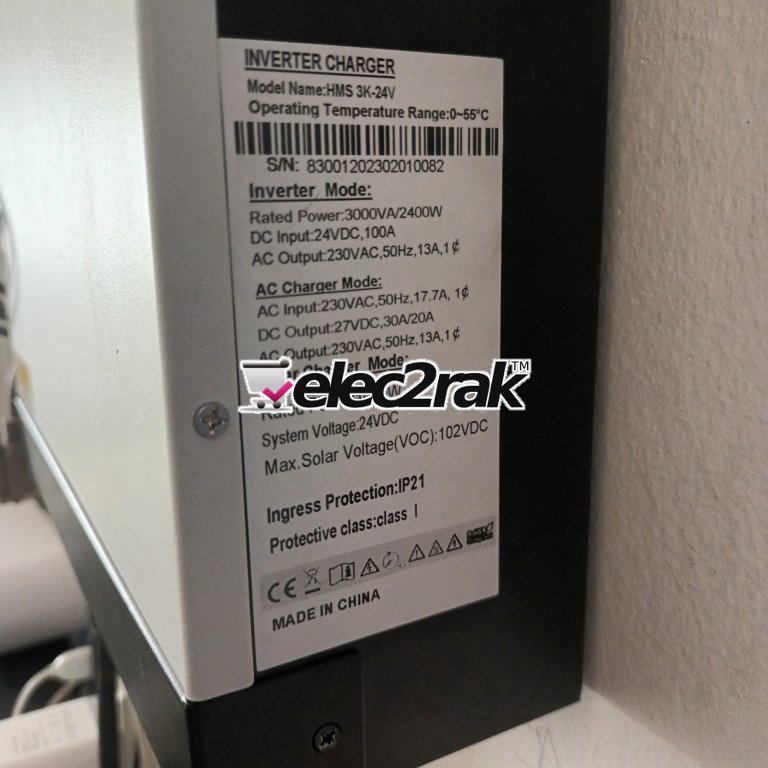

Hybrid Inverter HMS-3K-24 Connection:

• Battery
  • Super capacitor Maxwell 24V 500F
  • DC Breaker for Battery 200A
  • 4AWG Battery wire 100CMx2 included ring terminal  (Red/Black)
  • 4AWG Battery wire 30CMx1 (Red/Black)
  • LifePO4 24V 100Ahx2
• AC Input
  • AC Breaker 32A
  • AC Surge Protection Device (SPD)
  • 12AWG wire
• AC Output
  • AC Breaker 32A
  • 12AWG wire
  • Adjustable Voltage Protector
• Photovoltaic (PV)
  • DC Breaker 40A
  • DC Surge Protection Device (SPD)
  • PV1-F 8AWG Red and Black wire @ 20M
  • 7Pcs 2Way Splitter Connectors

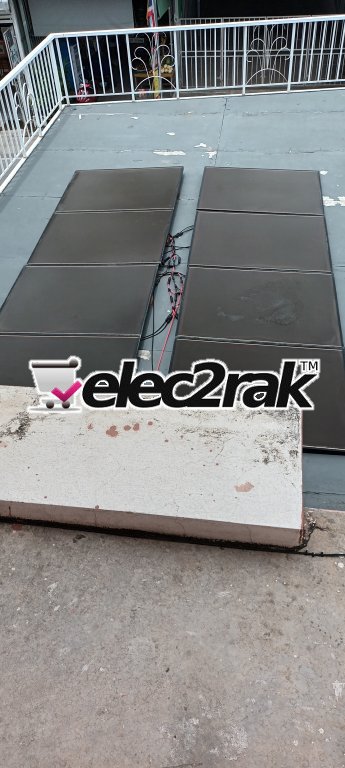

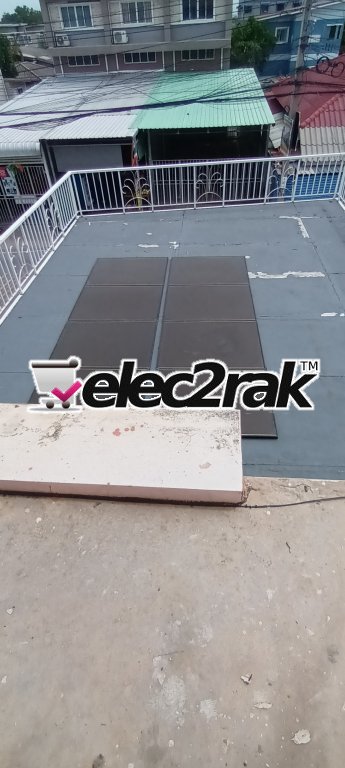

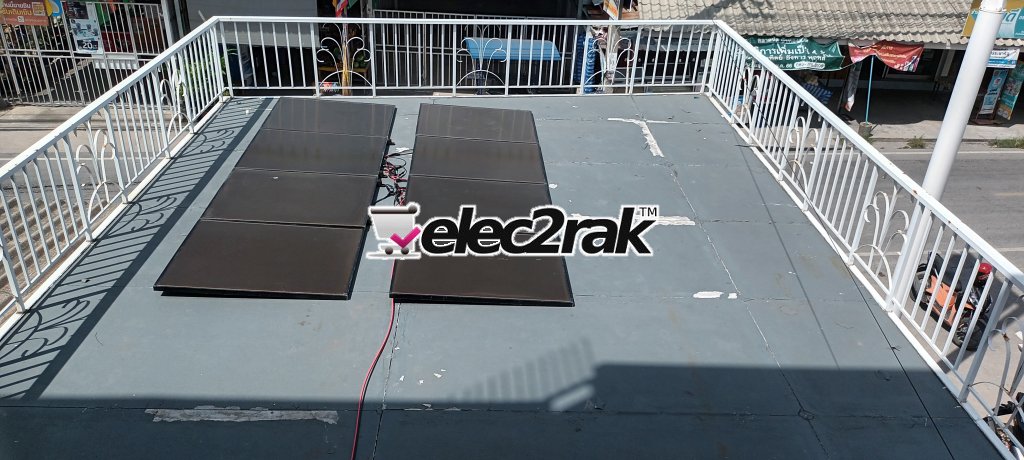

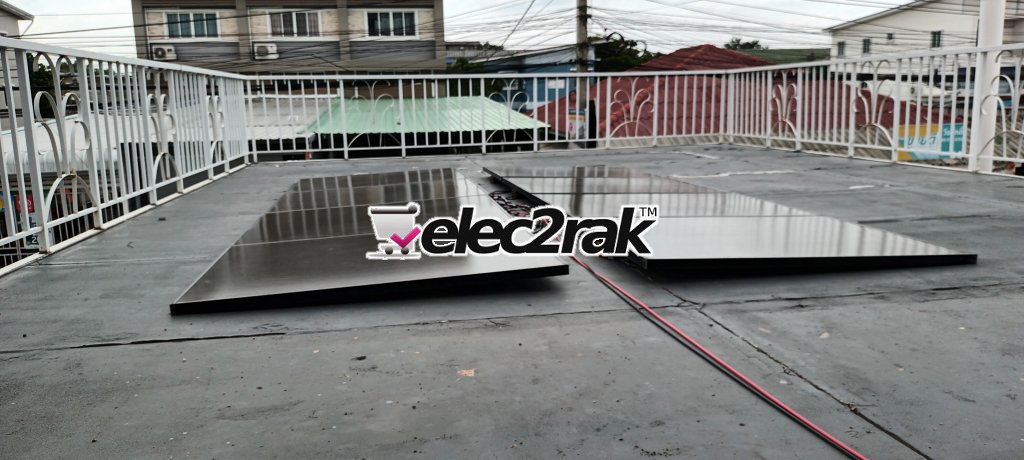

  • Solar cell panel Poly @300W 3 Strings  2PCS Parallel  or Amorphous@140W 1 String  8PCS Parallel

Component and part List:

• Electrical:
  • 35MM DIN Rail
  • 40mmx40mm Wiring duct
• Solar Panel Mounting:
  • Solar Aluminum Rail 2.1Mx4
  • Rail Splice Kit 4pcs
  • L Foot
  • Mid Clamp
  • End Clamp
  • Grounding washer clip
  • Ground lug wire clamp

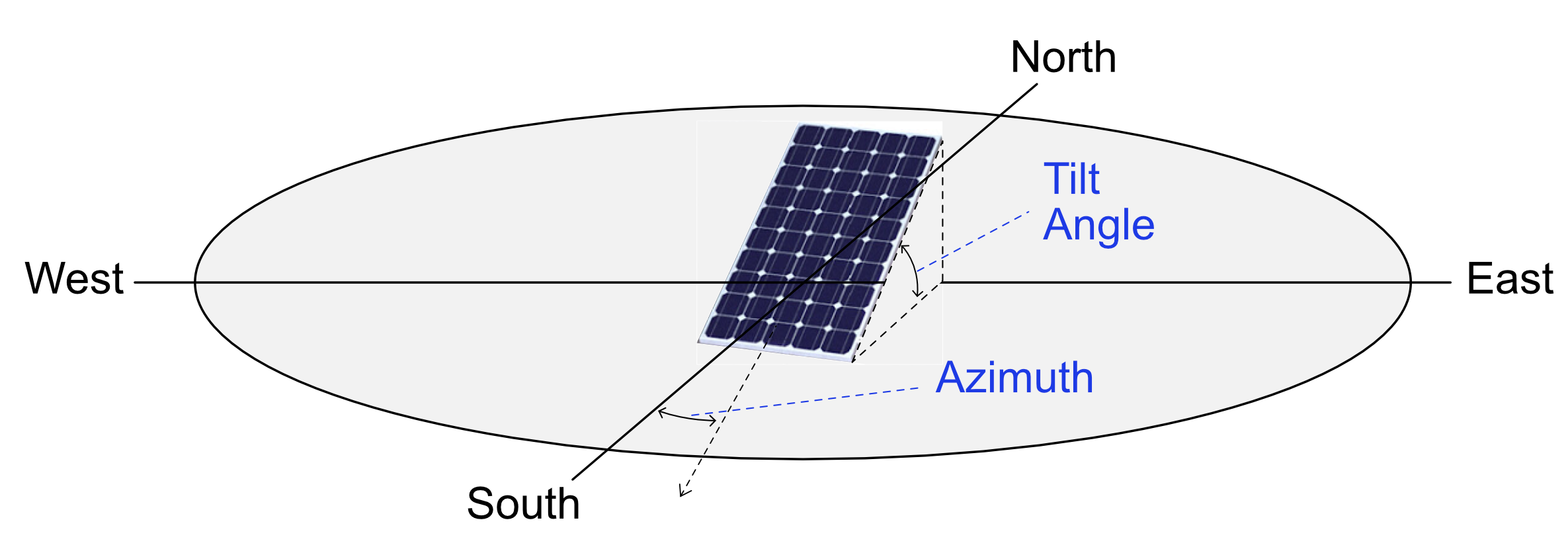

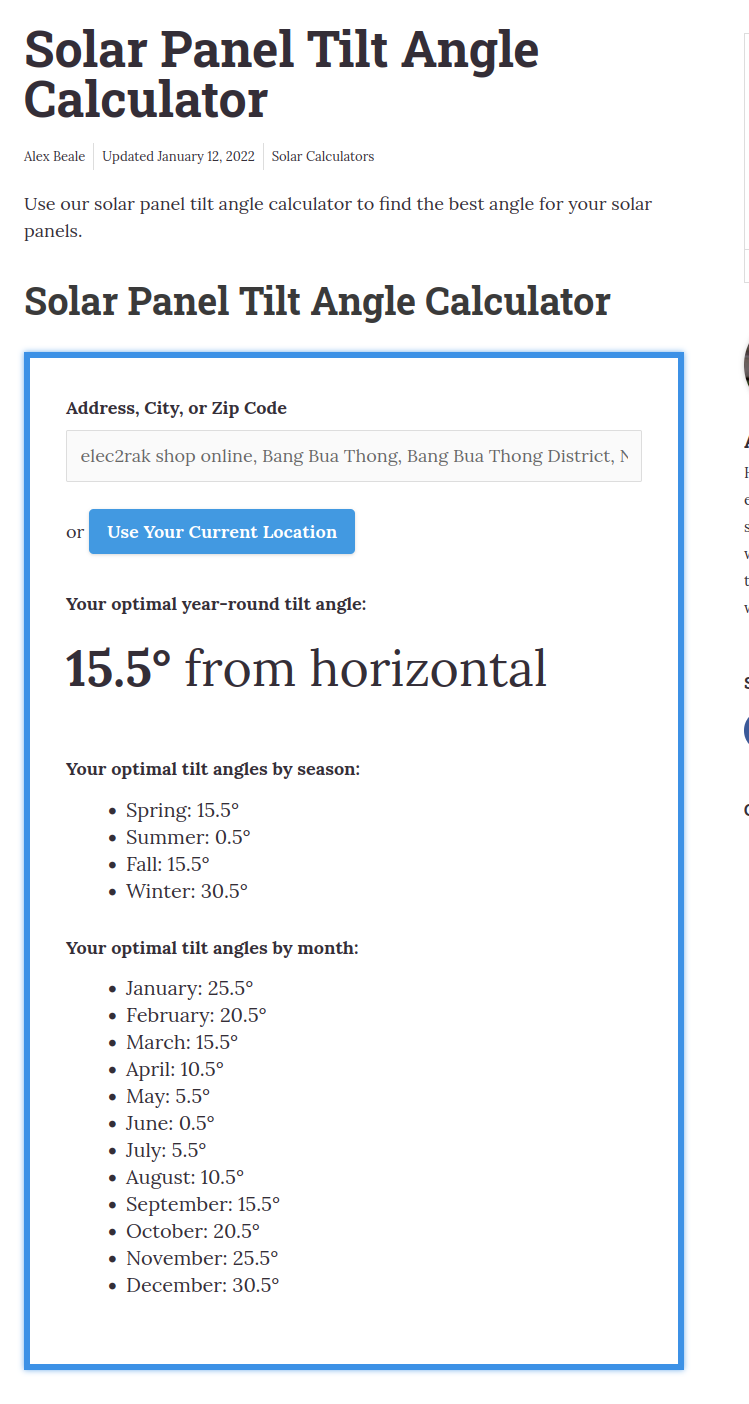

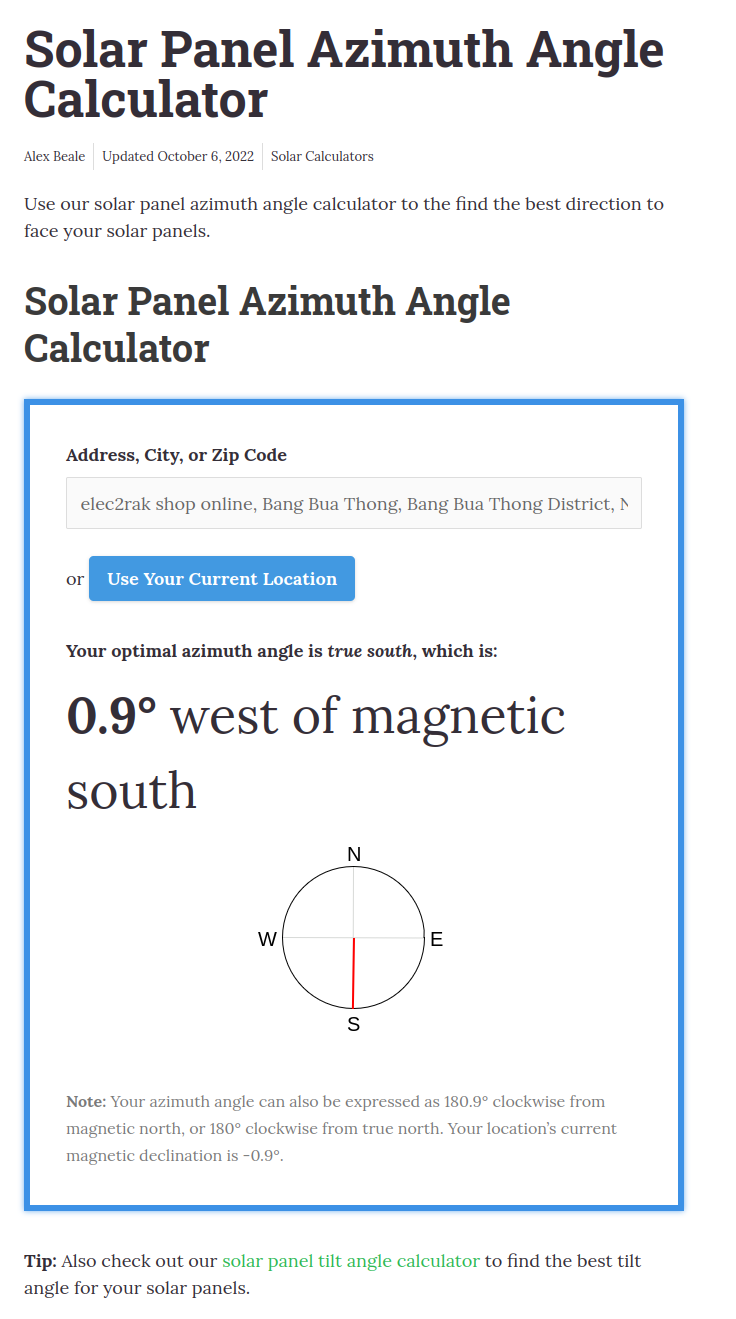

Solar Panel Azimuth & Panel Tilt Angles Calculator:

Reference: Solar Panel Azimuth Angle Calculator

Reference: Solar Panel Azimuth Angle Calculator

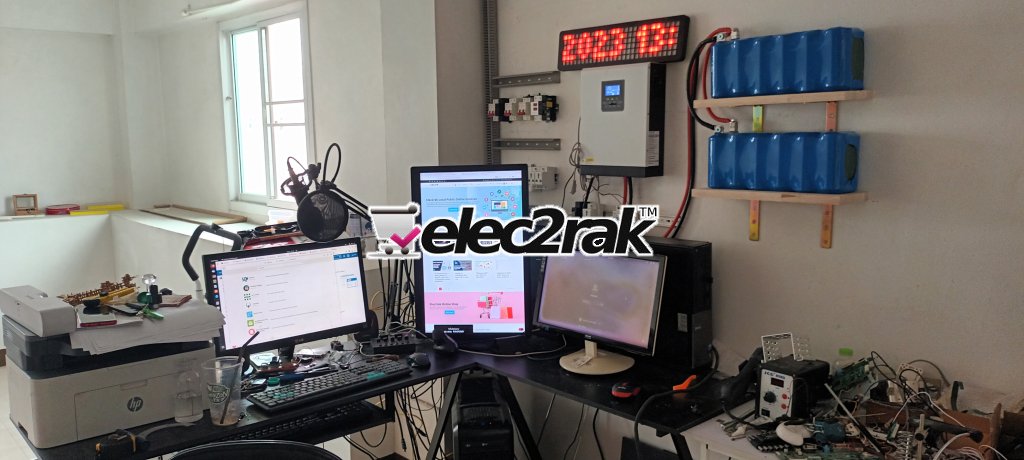

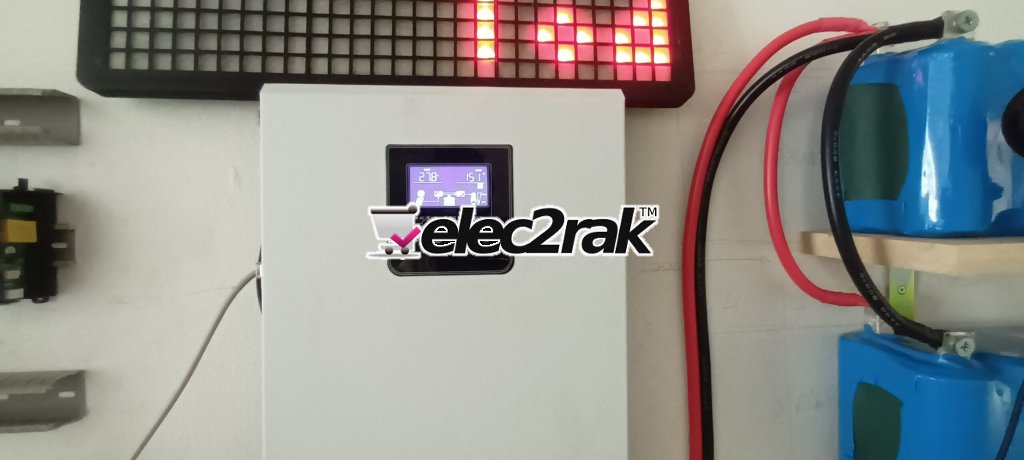

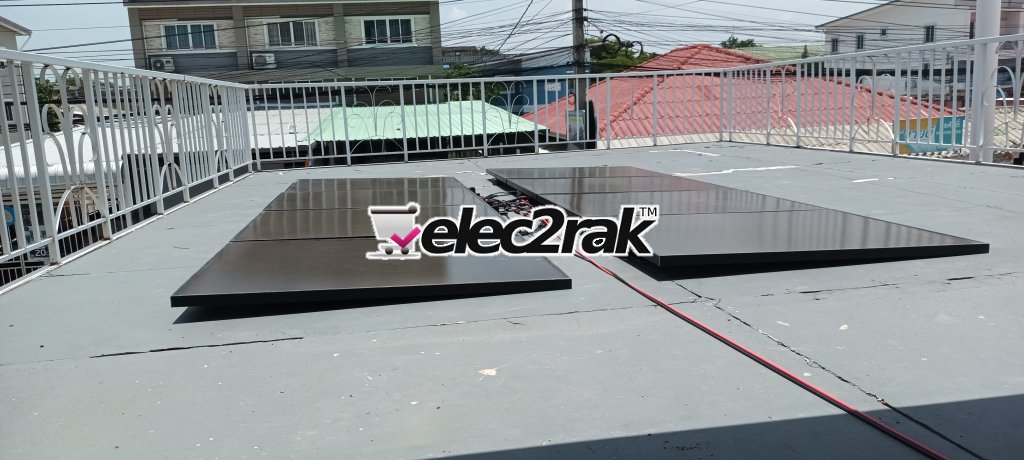

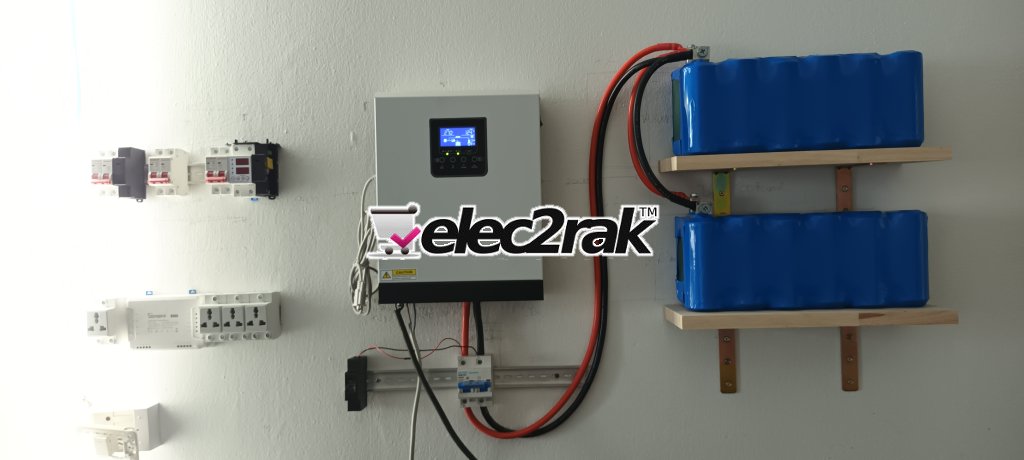

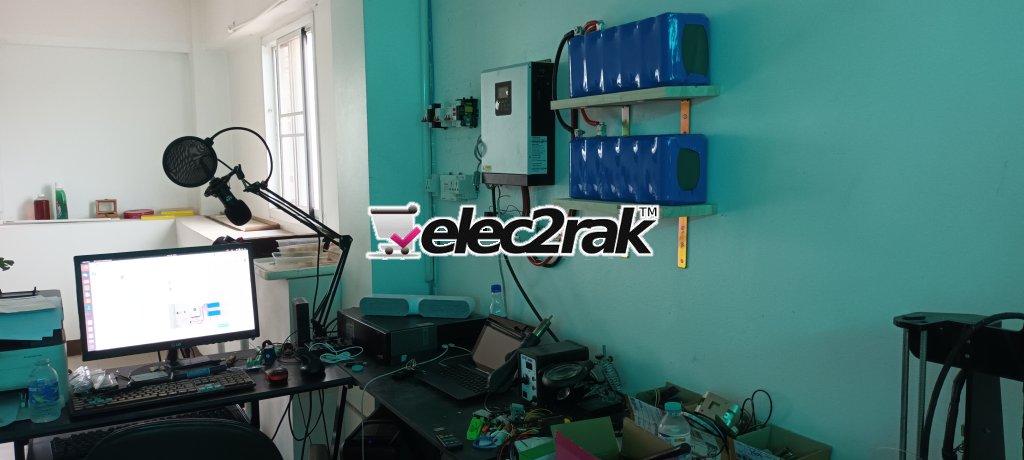

Project Completion Progress:
